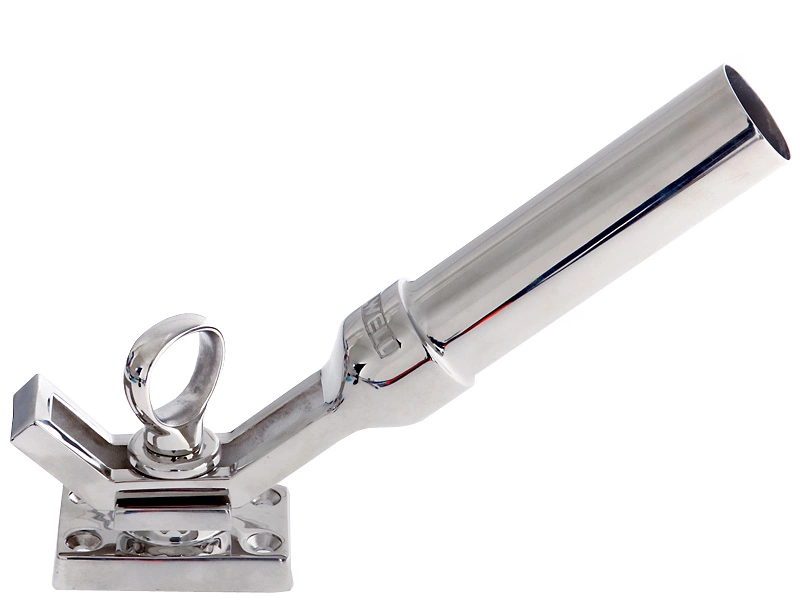

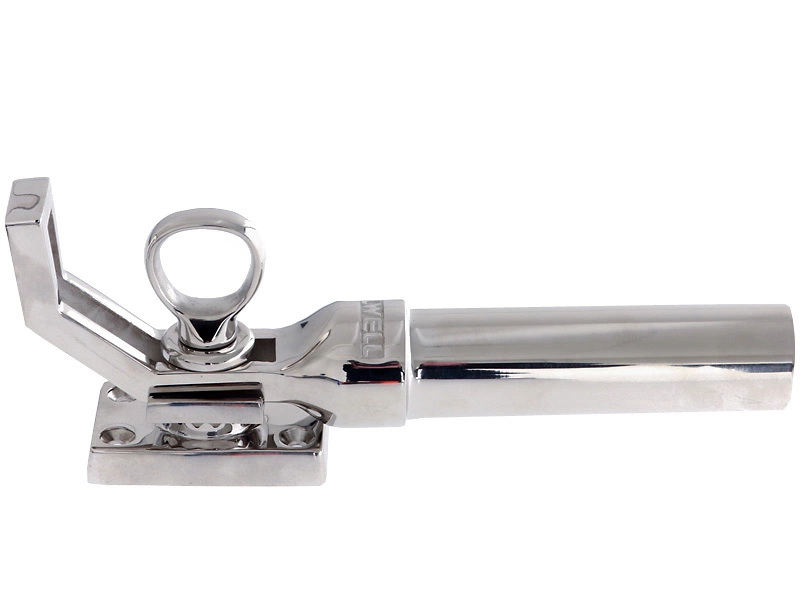

Kilwell ORB1 Stainless Steel Outrigger Base Assembly

Get the perfect trolling height and angle for your poles

The Kilwell ORB1 Stainless Steel Outrigger Base
Assembly is a compact and lightweight base made from
marine grade stainless steel. The base will swivel through 360
degrees plus it has 3 positions on the pole; vertical, 45 degrees,
or flat which enables a multitude of mounting options to get the
perfect trolling height and angle for your poles. The small

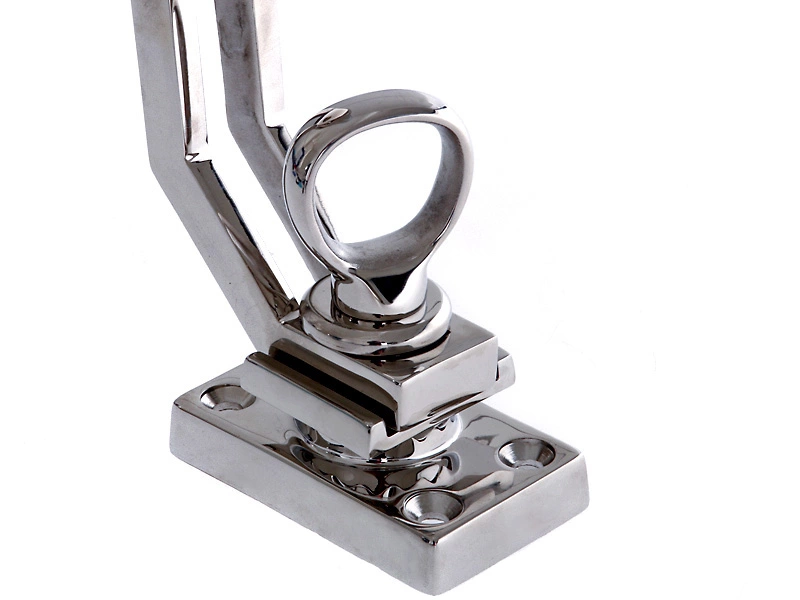

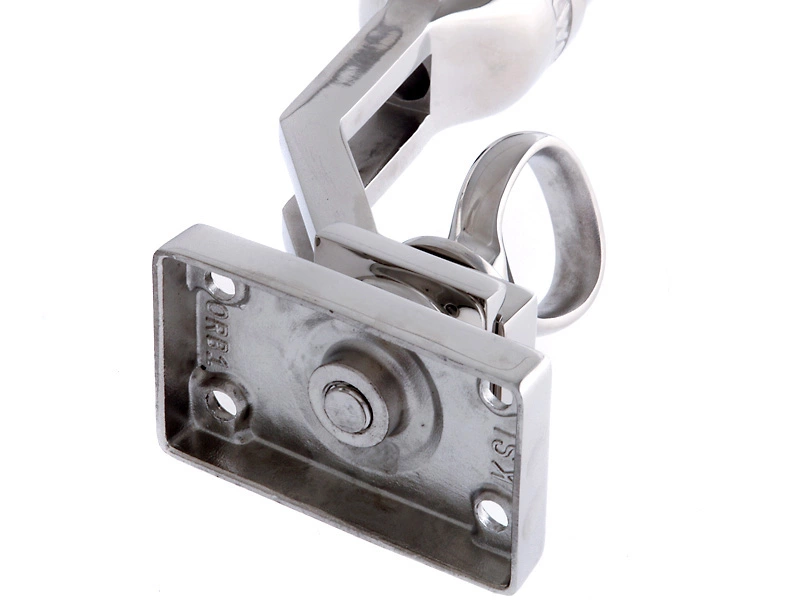

mounting plate is permanently bolted to the gunwhale or cabin on
top of your boat, but the outrigger pole is still removable. The
tube has an internal diameter of 39.5mm and is designed to be used
with 38mm external diameter Kilwell Outrigger blanks.

This base fitting can also be used as a heavy duty adjustable rod
holder for top mounting on your gunwale.

Kilwell ORB1 Stainless Steel Outrigger Base Assembly
Features:

• Material: Marine grade stainless steel
• Compact and lightweight
• Base: can swivel through 360 degrees
• 3 positions on pole: Vertical, 45 degrees, flat
• Designed to be permanently bolted to the gunwhale or cabin on
  top of boat
• Outrigger pole is removable
• Tube internal diameter: 39.5mm
• Designed to be used with 38mm diameter Kilwell Outrigger
  Blanks

Note: Rubber washer sold
separately

Kilwell ORB1 Stainless Steel Outrigger Base Assembly Installation
Instructions

Kilwell Outrigger Base Complete Components (parts are also
sold individually):

Note: For mounting to an aluminium hull it is
recommended that you add a Kilwell Outrigger Base Gasket [ORBGB] to
prevent corrosion between the stainless fitting and your aluminium
hull.
